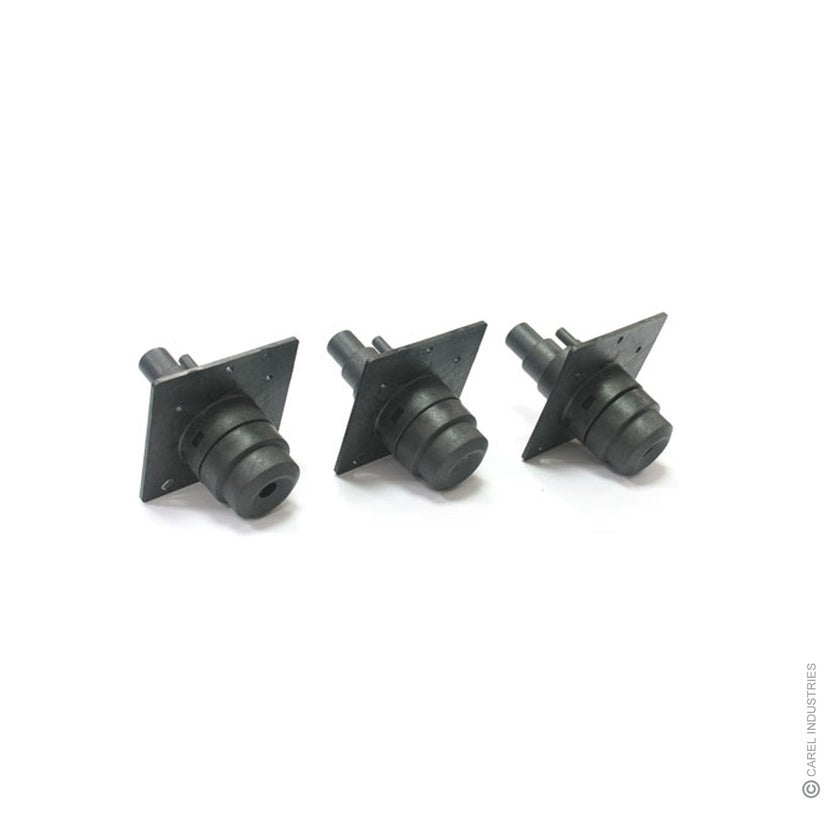

Steam nozzle SPDOEM

Main features

• Compact steam nozzle for duct installation

• Suitable for small ventilation ducts and air handling units (AHUs)
• Can also be used in steam baths
• Can be installed horizontally or vertically
• Steam outlet must be directed upwards for correct operation
• Integrated condensate connection
• Suitable for steam capacities up to 15 kg/h

Description

SDPOEM is a series of compact steam nozzles designed for steam distribution in small ventilation ducts, air handling units (AHUs) and steam baths. It is intended for lower steam capacities and is used where a linear steam distributor or ultimateSAM is not required.



Applications

• Ventilation ducts
• Air handling units (AHUs)
• Small humidification installations
• Steam baths / spas


Variants

• SDPOEM0000 – Adaptable connection
• SDPOEM0012 – 12 mm connection
• SDPOEM0022 – 22 mm connection


• Horizontal or vertical installation.
• The steam outlet must always be directed upwards.
• Installed with an approx. 2° inclination to ensure condensate drainage.
• Supplied with drilling template.
• Integrated condensate connection.
• When using a 30 mm steam hose, the 22 mm insert is removed from the steam nozzle.
• Suitable for steam capacities up to 18 kg/h per nozzle.
• Larger humidifiers can use two or more nozzles via Y-connectors.
