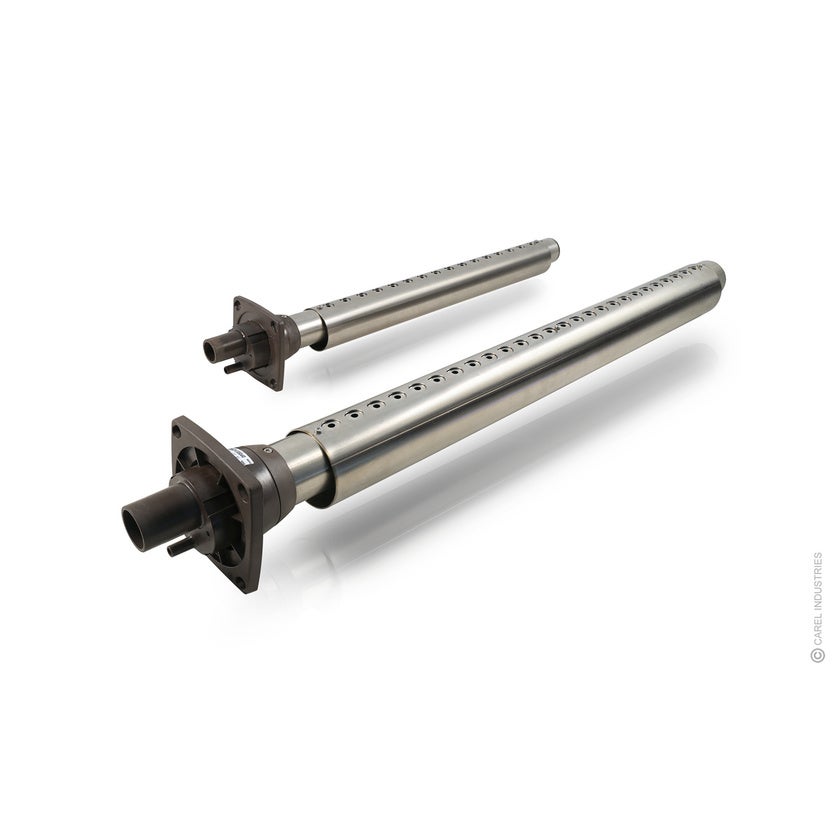

DP-RH-series steam distributors

Main features

• High-efficiency linear steam distributor for duct installation
• Designed for ventilation ducts and air handling units (AHU)
• Provides uniform steam distribution across the duct cross-section
• Short absorption distance
• Integrated condensate connection reduces condensation and prevents dripping
• Manufactured from stainless steel for long service life
• Available in several lengths and connection sizes
• Can be combined with multiple steam distributors for higher capacities

Description

CAREL linear steam distributors are designed for the distribution of atmospheric steam in ventilation ducts and air handling units (AHUs). They are intended for use with isothermal steam humidifiers and provide uniform steam distribution in the air stream with a short absorption distance and reduced risk of condensation.



The linear high-efficiency DP-series (DP******RH) steam distributors provide to customer needs, also in terms both functionality and energy savings.



The distributor is fitted with an air cushion, acting as an insulator between the steam pipe and the outer jacket. This reduces heat exchange between the hot steam inside the distributor and the lower-temperature air in the duct/AHU, and this reduces condensation by at least 20%.



Just like the classic DP-series, excellent steam distribution is ensured by the modular construction, making it possible to virtually cover all duct/AHU widths and exploit as much air flow as possible.



Applications

• Ventilation ducts
• Air handling units (AHUs)
• Comfort humidification
• Industrial humidification systems
• Commercial buildings


Capacities

• The DP-series covers a wide capacity range and is selected based on:
  – Humidifier steam capacity
  – Duct dimensions
  – Required absorption distance

• Multiple steam distributors can be installed in parallel for higher capacities.



Product selection

• Model selection is based on duct height and required steam distribution capacity.

• Available in lengths from 350 to 2050 mm.

• Diameters of Ø45 or Ø60 mm (for Ø30 or Ø40 mm hose).

• See document +800003001 Product Guide for available variants.



Accessories

• Flanges
• Steam hoses
• Condensate hoses
• Distribution pipes
• Mounting accessories


• The steam distributor is installed directly in the ventilation duct or air handling unit.

• Model and length selection is based on duct dimensions, steam capacity and required absorption distance.

• The steam distributor is connected to the humidifier via steam hose or steam piping, together with a condensate drain connection.

• For optimum performance, recommended straight duct lengths and minimum distances to bends, filters, cooling coils and sensors must be observed.
