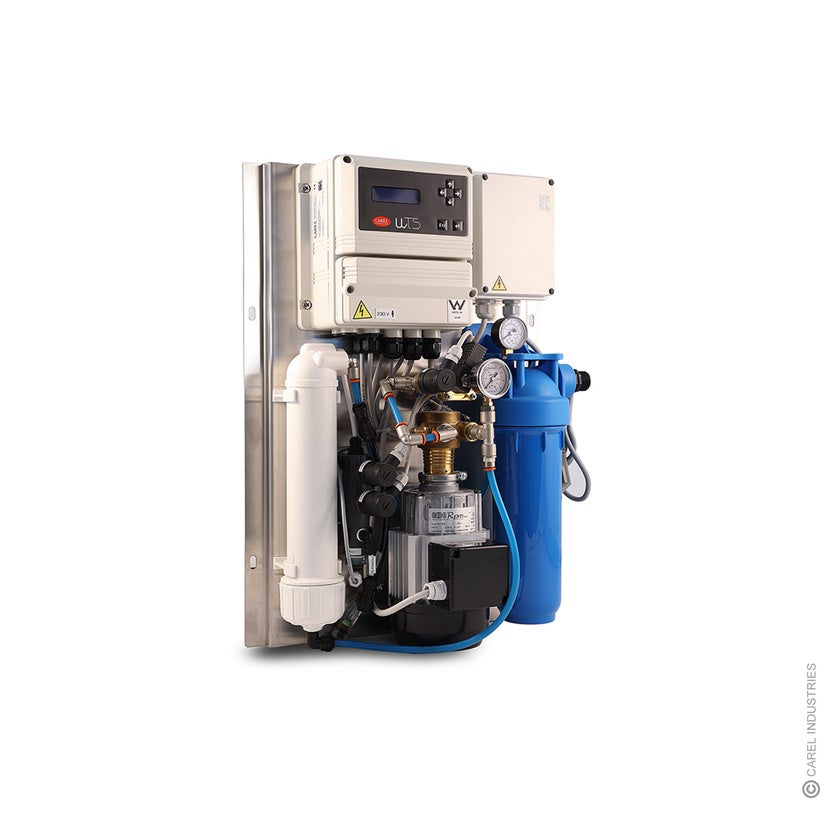

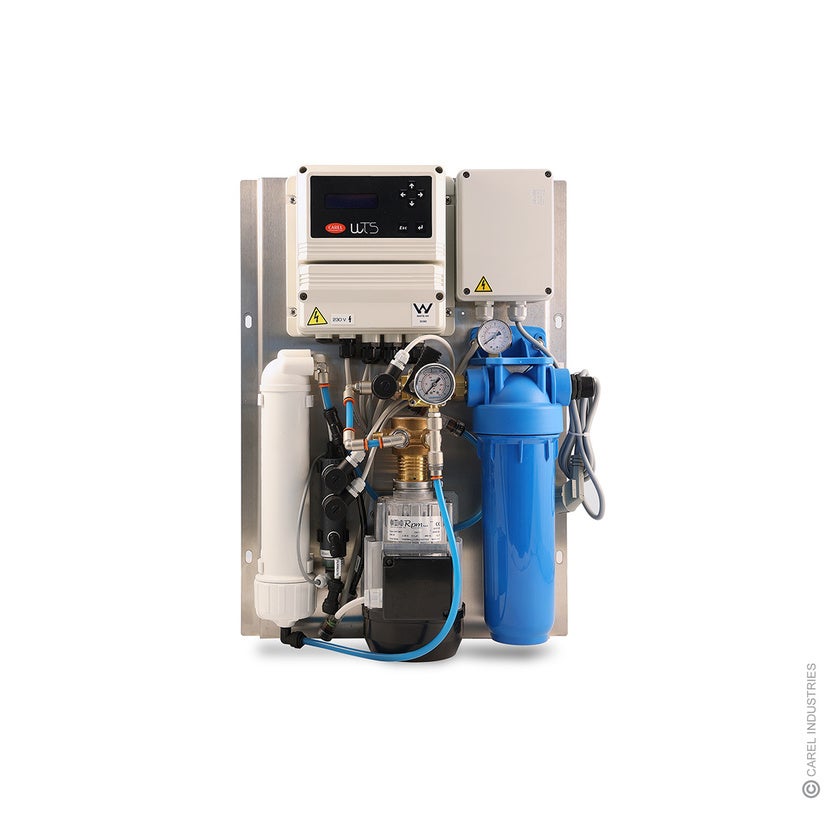

WTS Compact

Main features

• Specially developed for use with humidifiers

• Produces demineralized water for reduced maintenance

• Extends the lifespan of the humidifier

• Available in sizes from 25–1200 l/h

• Maximized hygiene through additional UV disinfection (accessory)

Description

• Demineraliserer vand ved hjælp af omvendt osmose. Vandet renses via højtrykspumpning gennem en membran med mikroskopiske porer (< 0,001 μm i diameter), som kun tillader visse stoffer at passere.

• WTS er forkalibreret for nem og hurtig opstart. Enhedens automatiske skylleprocedure reducerer behovet for vedligeholdelse.

• WTS-enhederne er tilpasset vores systemløsninger og sikrer perfekt drift sammen med CAREL luftbefugtere.

• WTS producerer demineraliseret vand uden bakterier eller urenheder.

• I kombination med adiabatiske befugtere forhindrer WTS ophobning af snavs i ventilationsaggregater og hindrer, at støv fra mineralsalte kommer ind i det befugtede miljø.

• Yderligere sikkerhed kan opnås via tilbehør til desinfektion med UV-belysning (tillbehør).


Product sizes – WTS Compact

Capacity (l/h) | Designation

25 l/h | ROC0255002

40 l/h | ROC0405002

80 l/h | ROC0805002

140 l/h | ROC1405002



Product sizes – WTS Large

Capacity (l/h) | Designation

160 l/h | ROL160x00v (x0Bv)

320 l/h | ROL320x00x (x0Bv)

460 l/h | ROL460x00v (x0Bv)

600 l/h | ROL600x00v (x0Bv)

1000 l/h | ROL1K0x00v (x0Bv)

12000 l/h  |ROL1K2x00v (x0Bv)



Option – WTS Large

• Filtration level: high (0) or very high (B)



Accessories

• Expansion vessel for WTS compact / large

– Keeps water at a pressure of 2-4 bars.

– WTS Compact: Wall mounting using the bracket supplied.

– WTS Large: Floor-standing installation.



• Storage tank with booster pump

– Capable of pressurising water up to 20 m in height. Ideal for applications with complex layouts.



• UV disinfection

– Guarantees the highest level of hygiene. The lamp shines UV light on the feedwater flow, helping to eliminate any biological contaminants such as bacteria, viruses, moulds, spores and yeasts.



• Blending kit

– Allows operation of immersed electrode steam humidifiers in places with particularly hard feedwater, as it reduces the frequency of cylinder replacement.



Consumables

• Descaling solution

– Pack of 10 or 25 kg to prevent calcium and magnesium build-up on the membranes.

– Available in two versions: EN 15040 compliant or NSF certified, in both cases for water intended for safe human consumption.



• UV disinfection lamp

– UV disinfection lamp for ensuring hygiene levels.
